Model
|

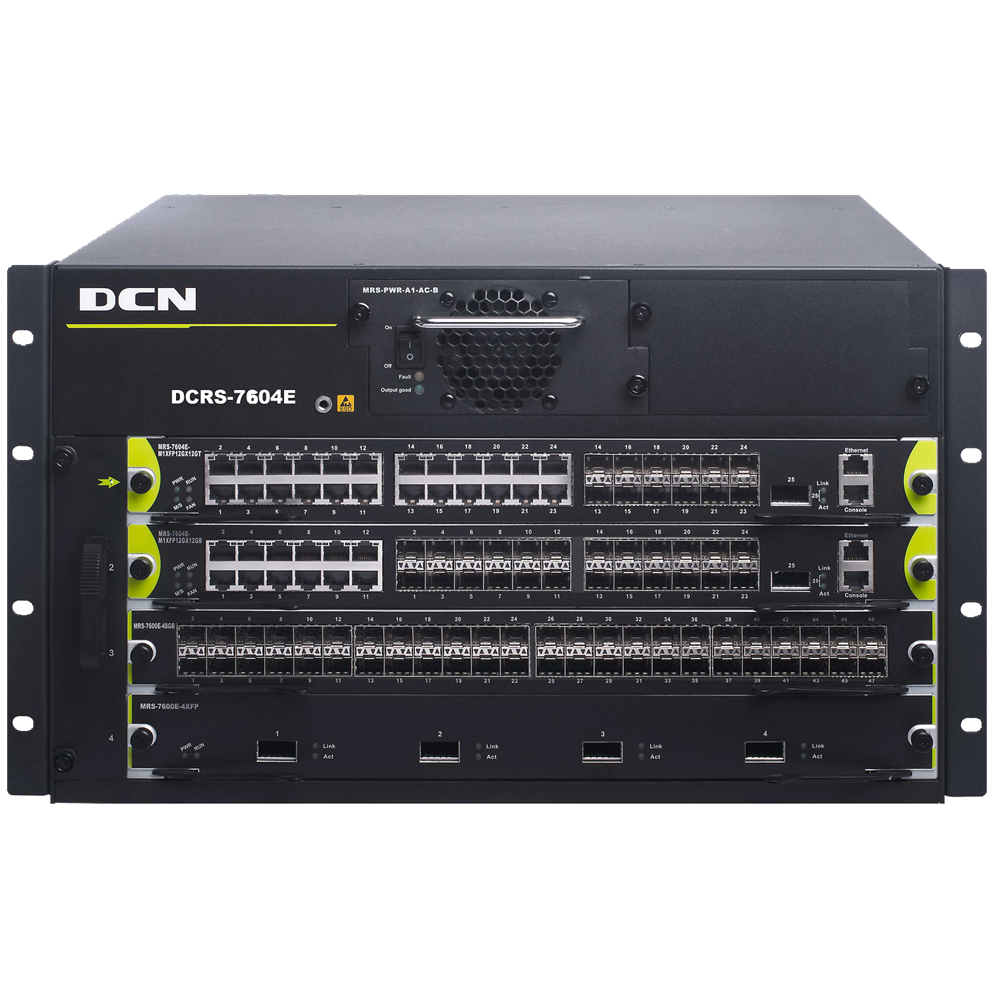

DCRS-7604,4 Slot Omurga
|
DCRS-7608,10 Slot Omurga
|
CS16809,10 Slot Omurga
|
DCRS-9816,18 Slot Omurga
|
|
Max Bakır Portlar
|
168 adet 10/100/1000Base-T
|
384 adet 10/100/1000Base-T
|
432 adet 10/100/1000Base-T
|
384 adet 10/100/1000Base-T
|
|
Max SFP/Mini GBIC Yuva
|
168 adet 100/1000Base-X
|
384 adet SFP 100/1000Base-X
|
432 adet SFP 100/1000Base-X
|
384 adet SFP 100/1000Base-X
|
|
Max 10G Port
|
60 adet SFP+
|
32 adet XFP
|
432 adet SFP+
|
384 adet SFP+
|
|
Max 40G Port
|
6 adet QSFP+
|
16 adet QSFP+
|
144 adet QSFP+
|
32 adet QSFP+
|
|
Anhtarlama Kapasitesi
|
1.7Tbps
|
3.4 Tbps
|
10 Tbps
|
7.6 Tbps
|
|
Performans
|
282 Mpps
|
571 Mpps
|
7.600 Mpps
|
1.800 Mpps
|
|
DRAM
|
1GB Yönetim Modülü
|
2GB Yönetim Modülü
|
16 GB Yönetim Modülü
|
2GB YönetimModülü
|
|
MAC Adres Tablosu
|
128K
|
128K
|
400K
|
128K
|
|
VLAN Tablosu
|
4k
|
4k
|
4k
|
4k
|
|
Routing Tablosu
|
16K
|
16K
|
16K
|
128K
|
|
Routing Domain
|
1K
|
1K
|
1K
|
1K
|
|
VRF
|
252
|
252
|
252
|
252
|
|
IPv4/v6 Routing Protokolü
|
StaticRoute,
RIPv1/v2,
VLSM,CIDR,
VRRP,VRRPv3,
BFD,
Black Hole Route
RIPng
OSPPFv2,v3
BGP4+
IPv6 Tunneling
VRF
MPLS
|
StaticRoute,
RIPv1/v2,
VLSM,CIDR,
VRRP,VRRPv3,
BFD,
Black Hole Route
RIPng
OSPPFv2,v3
BGP4+
IPv6 Tunneling
VRF
MPLS
|
StaticRoute,
RIPv1/v2,
VLSM,CIDR,
VRRP,VRRPv3,
BFD,
Black Hole Route
RIPng
OSPPFv2,v3
BGP4+
IPv6 Tunneling
VRF
MPLS
|
StaticRoute,
RIPv1/v2,
VLSM,CIDR,
VRRP,VRRPv3,
BFD,
Black Hole Route
RIPng
OSPPFv2,v3
BGP4+
IPv6 Tunneling
VRF
MPLS
|
|
Multicast Routing
|
IGMP v1,v2,v3,Snooping,
IGMP Proxy,
ICMPv6,
ND,ND Snooping,
MLD v1/v2,
MLD Snooping
PIM-DM/SM/SSM
Anycast RP
RIPng
|
IGMP v1,v2,v3,Snooping,
IGMP Proxy,
ICMPv6,
ND,ND Snooping,
MLD v1/v2,
MLD Snooping
PIM-DM/SM/SSM
Anycast RP
RIPng
|
IGMP v1,v2,v3,Snooping,
IGMP Proxy,
ICMPv6,
ND,ND Snooping,
MLD v1/v2,
MLD Snooping
PIM-DM/SM/SSM
Anycast RP
RIPng
|
IGMP v1,v2,v3,Snooping,
IGMP Proxy,
ICMPv6,
ND,ND Snooping,
MLD v1/v2,
MLD Snooping
PIM-DM/SM/SSM
Anycast RP
RIPng
|
|
LLDP,LLDP-MED,UDLD
Loop Guard,Digital Diagnostic Monitor,Sanal Kablo Testi
|
Var
|
Var
|
Var
|
Var
|
|
Spanning Tree
|
802.1d(STP),
802.1w(RSTP),
802.1s(MSTP),
Root Guard,
Bpdu Guard,BPDU Forwarding
|
802.1d(STP),
802.1w(RSTP),
802.1s(MSTP),
Root Guard,
Bpdu Guard,BPDU Forwarding
|
802.1d(STP),
802.1w(RSTP),
802.1s(MSTP),
Root Guard,
Bpdu Guard,BPDU Forwarding
|
802.1d(STP),
802.1w(RSTP),
802.1s(MSTP),
Root Guard,
Bpdu Guard,BPDU Forwarding
|
|
VLAN
|
PortTabanlı,
802.1q,
Q-in-Q,
Selective Q-in-Q,
GVRP,
Voice VLAN,
Private VLAN
MAC VLAN
|
PortTabanlı,
802.1q,
Q-in-Q,
Selective Q-in-Q,
GVRP,
Voice VLAN,
Private VLAN
MAC VLAN
|
PortTabanlı,
802.1q,
Q-in-Q,
Selective Q-in-Q,
GVRP,
Voice VLAN,
Private VLAN
MAC VLAN
|
PortTabanlı,
802.1q,
Q-in-Q,
Selective Q-in-Q,
GVRP,
Voice VLAN,
Private VLAN
MAC VLAN
|
|
IPv4,IPv6 MVR
|
Var
|
Var
|
Var
|
Var
|
|
IPv6/v6 Port Binding
|
Var
|
Var
|
Var
|
Var
|
|
Qos
|
802.1p,
Tos,
DSCP,
SP,
WRR,
SWRR,
Traffic Shaping,
PRI Mark/Remark
Broadcast Storm Control
|
|
802.1p,
Tos,
DSCP,
SP,
WRR,
SWRR,
Traffic Shaping,
PRI Mark/Remark
Broadcast Storm Control
|
802.1p,
Tos,
DSCP,
SP,
WRR,
SWRR,
Traffic Shaping,
PRI Mark/Remark
Broadcast Storm Control
|
|
ACLv4/v6
|
IP ve MAC tabanlı
TCP/UDP tabanlı
Zaman tabanlı
|
IP ve MAC tabanlı
TCP/UDP tabanlı
Zaman tabanlı
|
IP ve MAC tabanlı
TCP/UDP tabanlı
Zaman tabanlı
|
IP ve MAC tabanlı
TCP/UDP tabanlı
Zaman tabanlı
|
|
Güvenlik
|
MAC tabanlı yetkilendirme
ARP Inspection
ARP Guard
Pingsweep guard
DDOS guard
CPU koruma
Port koruma
Anti Bluster,Zeroday,SQL Slammer
URPF
|
MAC tabanlı yetkilendirme
ARP Inspection
ARP Guard
Pingsweep guard
DDOS guard
CPU koruma
Port koruma
Anti Bluster,Zeroday,SQL Slammer
URPF
|
MAC tabanlı yetkilendirme
ARP Inspection
ARP Guard
Pingsweep guard
DDOS guard
CPU koruma
Port koruma
Anti Bluster,Zeroday,SQL Slammer
URPF
|
MAC tabanlı yetkilendirme
ARP Inspection
ARP Guard
Pingsweep guard
DDOS guard
CPU koruma
Port koruma
Anti Bluster,Zeroday,SQL Slammer
URPF
|
|
DHCPv4/v6
|
DHCP server,client
DHCP Snooping
Option 43/60/82
Option 37/38
|
DHCP server,client
DHCP Snooping
Option 43/60/82
Option 37/38
|
DHCP server,client
DHCP Snooping
Option 82
Option 37/38
|
DHCP server,client
DHCP Snooping
Option 82
Option 37/38
|
|
DNS
|
DNS Client
DNS Proxy
|
DNS Client
DNS Proxy
|
DNS Client
DNS Proxy
|
DNS Client
DNS Proxy
|
|
AAA
|
Radius ve TACACS IPv4,IPv6
|
Radius ve TACACS IPv4,IPv6
|
Radius ve TACACS IPv4,IPv6
|
Radius ve TACACS IPv4,IPv6
|
|
Güç Tüketimi
|
<400W
|
<1200w
|
<960W
|
<1600W
|
|
Yönetim
|
RS-232
Komut satırı
WEB Based
SNMP v1/v2/v3 Ipv4
SNMP v1/v2 IPv6
SSL,SSH
DCN Private MIB
Telnet
Syslog
FTP,TFTP
SNTP,NTP
RSPAN
ERSPAN
|
RS-232
Komut satırı
WEB Based
SNMP v1/v2/v3 Ipv4
SNMP v1/v2 IPv6
SSL,SSH
DCN Private MIB
Telnet
Syslog
FTP,TFTP
SNTP,NTP
RSPAN
ERSPAN
|
RS-232
Komut satırı
WEB Based
SNMP v1/v2/v3 Ipv4
SNMP v1/v2 IPv6
SSL,SSH
DCN Private MIB
Telnet
Syslog
FTP,TFTP
SNTP,NTP
RSPAN
ERSPAN
|
RS-232
Komut satırı
WEB Based
SNMP v1/v2/v3 Ipv4
SNMP v1/v2 IPv6
SSL,SSH
DCN Private MIB
Telnet
Syslog
FTP,TFTP
SNTP,NTP
RSPAN
ERSPAN
|
